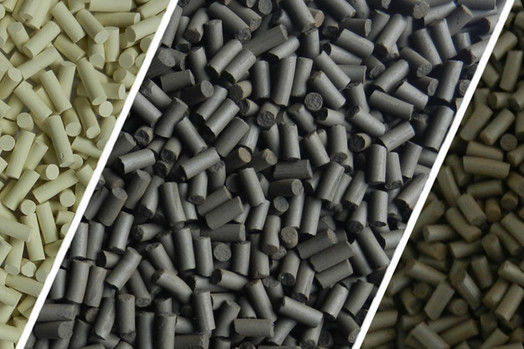

SAL-115 Iron-manganese desulfurizing catalyst

Description

Model:SAL-115

The Iron-manganese Desulfurizing Catalyst SAL-115 is developed and manufactured by us with the latest scientific and technological breakthroughs. The catalyst owns double-effect function of organic sulfur hydrogenation and desulfurization. By using the catalyst, organic sulfur is converted into inorganic sulfur(H2S) by hydrogenolysis, hydrolysis and pyrolysis processes, and then, H2S and active metal oxide react to become metal sulfide, which is absorbed by the catalyst to achieve the sulfur removal purpose, the catalyst can be regenerated.

The main reactions are as follows:

Hydrogenolysis

RSH + H₂ → H₂S + RH

RSR + H₂ → H₂S + RH + RH

RSSR + 3H₂ → 2H₂S + RH + RH

Hydrolysis

RSH + H₂O → H₂S + ROH

RSR + H₂O → H₂S + 2ROH

Pyrolysis

2CH₃SH ₂H₂S + C₂H₄

CH₃SCH₃ H₂S + C₂H₄

H2S with metal

H₂S + MO → MS + H₂O (M is the abbr of metal)

Industrial Applications

The catalyst is suitable for sulfur purification system of natural gas, coke oven gas, oil field gas, naphtha, refinery and dry gas.

Physical and Chemical Properties

Operation Conditions

Operation temperature: 200 ~ 450℃

Operation pressure: ≤ 30Mpa

Space velocity of feed gas: 1000 ~ 3000h-1

Outlet sulfur of the tube: ≤ 2ppm

Product Advantages

Low service life at high pressure and high space velocity than other similar catalyst ;

Large sulfur capacity; large surface area;

High activity, high selectivity, high organic sulfur conversion rate;

High strength and structural stability.
