Medium Pressure Methanol Synthesis Catalyst Methanol Production Catalyst

Name: Medium Pressure Methanol Synthesis Catalyst Methanol Production Catalyst
Brand: Henan Salmut Import and Export co.,Ltd.
SKU: SAL-113
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SALMUT

Model Number: SAL-113

Payment & Shipping Terms

Minimum Order Quantity: 500kgs

Price: Negotiable

Packaging Details: Drums or according to customer's requirement.

Delivery Time: 30 working days

Payment Terms: L/C, D/P, T/T

Supply Ability: 20000mts

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                Medium Pressure Methanol Synthesis Catalyst, Methanol Synthesis Catalyst Chemicals, Chemicals Methanol Production Catalyst

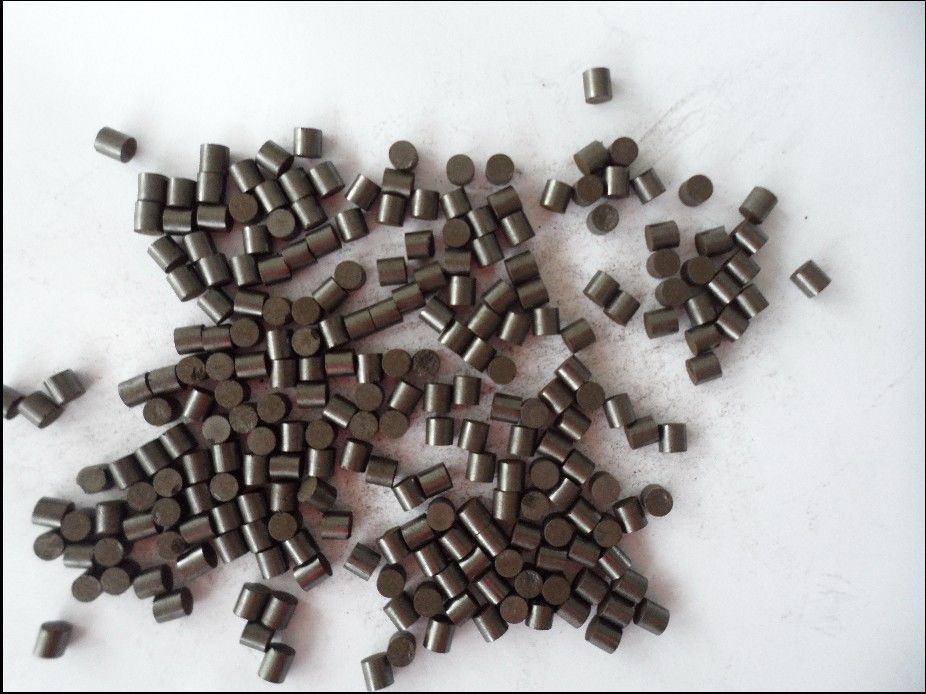

Name:	Medium-pressure Methanol Synthesis Catalyst	Appearance:	Luster Circular Cylinder
Size:	Ф5×4~6	Main Components:	CuO-ZnO-Al2O3-auxiliaries
Usage:	Catalyst

Name:	Medium-pressure Methanol Synthesis Catalyst
Appearance:	Luster Circular Cylinder
Size:	Ф5×4~6
Main Components:	CuO-ZnO-Al2O3-auxiliaries
Usage:	Catalyst

Medium Pressure Methanol Synthesis Catalyst Methanol Production Catalyst

SAL-113 Medium-pressure Methanol Synthesis Catalyst

Description

Model:SAL-113

The Medium-pressure Methanol Synthesis Catalyst SAL-113 is a kind of Cu-Zn-Al based methanol synthesis catalyst for using coal, oil field gas, refinery gas, coke oven gas, naphtha, natural gas or oil as it’s feedstock. The synthesis plant pressure is8 ~ 15Mpa. The catalyst is mainly used for the synthesis of ammonia co-methanol plant.

The main reactions are as follows:

CO + 2H2→ CH3OH + 90.69 KJ/mol

CO2 + 3H2→ CH3OH+H2O + 49.53 KJ/mol

Physical and Chemical Properties

Item	Description
Appearance	Luster circular cylinder
Size, mm	Ф5×4~6
Radial Crush Strength, N/cm	≥180
Main Components	CuO-ZnO-Al2O3-auxiliaries

Operation Conditions

Operation temperature: 210 ~ 320℃

Operation pressure: 8 ~ 15Mpa

Space velocity: 7000 ~ 20000h^-1

CO conversion rate: ≥ 85%

Product Advantages

Good activity at low temperature, easier to reaching heat balance;

Good thermal stability and good selectivity;

Less by-products;

High strength, saving energy and long service life.
