50 kV/mm Ceramic Material B-97 Beryllium Oxide Ceramics Substrate

Name: 50 kV/mm Ceramic Material B-97 Beryllium Oxide Ceramics Substrate
Brand: SALMUT
SKU: SALMUT
Rating: 4.9 (147 reviews)

Product Details

Place of Origin: China

Brand Name: SALMUT

Payment & Shipping Terms

Minimum Order Quantity: 25mts

Price: negotiable

Packaging Details: Wooden box packaging.

Delivery Time: 20 working days

Payment Terms: L/C, D/P, T/T

Supply Ability: Annual production of over 15 million pieces

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                50 kV/mm Ceramic Material, Ceramic Material Beryllium Oxide


Size:	1-114mm	Thickness:	0.2-20mm
Appearance:	Grayish White Substrate	Name:	B-97 Beryllium Oxide Ceramics
Dielectric Constant (1MHz):	6.9 ± 0.4	Thermal Conductivity (25 ℃):	≥ 200W/m. K

Size:	1-114mm
Thickness:	0.2-20mm
Appearance:	Grayish White Substrate
Name:	B-97 Beryllium Oxide Ceramics
Dielectric Constant (1MHz):	6.9 ± 0.4
Thermal Conductivity (25 ℃):	≥ 200W/m. K

50 kV/mm Ceramic Material B-97 Beryllium Oxide Ceramics Substrate

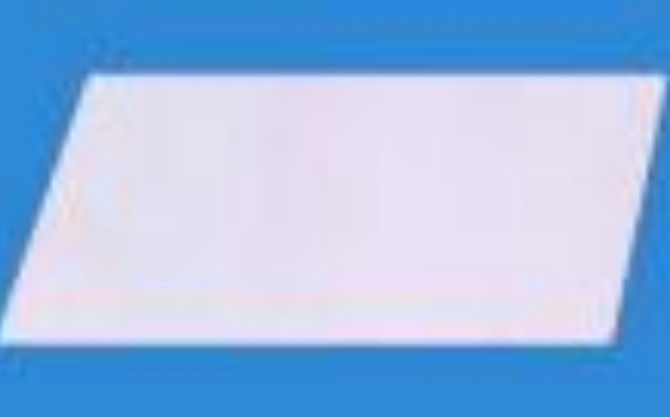

B-97 Beryllium oxide ceramics substrate

Ceramic Material B-97 Beryllium Oxide Ceramics Substrate

Beryllium oxide ceramics are ceramics mainly composed of beryllium oxide. Mainly used as materials for large-scale integrated circuit substrates, high-power gas laser tubes, heat sink shells for transistors, microwave output windows, and neutron reducers.

Characteristic

Volume density: ≥ 2.82 g/cm³

Volume resistivity: ≥ 1014 Ω. cm

Tangent value of dielectric loss angle: ≤ 4 × 10^-4

Breakdown strength: ≥ 50 kV/mm

Bending strength: ≥ 190 MPa

Working temperature: -40 ℃~+1600 ℃

Usage

Solid state electronics, various high-power applications Devices, optical communication.

50 kV/mm Ceramic Material B-97 Beryllium Oxide Ceramics Substrate 0
