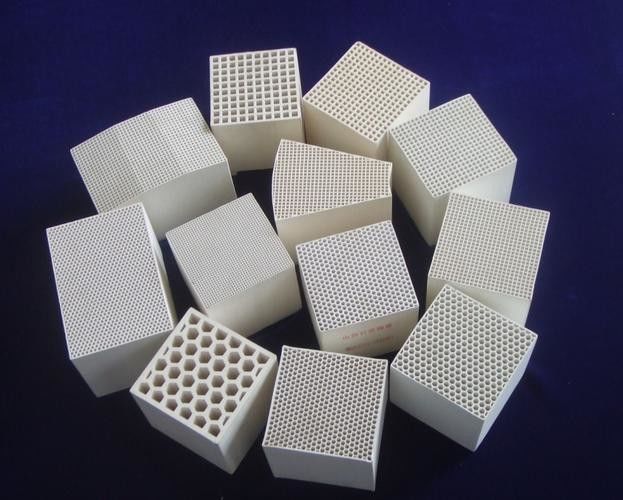

RTO RCO Honeycomb Ceramics For VOCS Waste Gas Treatment Incinerators

                                 RTO/RCO Honeycomb Ceramics(for VOCS waste gas treatmentincinerators)

Product application features

RTO technology and RCO technology are VOCs (volatile organic compound) treatment technologies, and are mature technologies with wide application, good treatment effect, stable operation and low cost.

RTO refers to the regenerative thermal oxidation technology, and the English name is "Regenerative Thermal Oxidizer". RTO regenerative thermal oxidation recovers heat by adopting a new unsteady heat transfer method. The principle is to heat the organic waste gas above 760 °C to oxidize and decompose VOC in the exhaust gas into CO2 and H2O. The high-temperature gas generated by the oxidation flows through the special ceramic regenerator, and the ceramic body is heated and "heat-storing", and the heat storage is used for preheating the organic exhaust gas that is subsequently introduced, thereby saving the fuel consumption of the exhaust gas heating. RTO technology is suitable for the treatment of low and medium concentration (100- 3500mg/m) waste gas with a decomposition efficiency of 95%-99%.

RCO refers to the regenerative catalytic combustion method, and the English is "Regenerative Catalytic Oxidation Oxidition". The principle of RCO regenerative catalytic combustion is as follows: the first step is the adsorption of VOC molecules by the catalyst, and the concentration of the reactants is increased. The second step is to reduce the activation energy of the reaction and increase the reaction rate. By means of the catalyst, the organic waste gas can be anaerobicly burned at a lower light-off temperature, and decomposed into CO₂ and H2O to release a large amount of heat. Compared with direct combustion, it has the characteristics of low light- off temperature and low energy consumption. In the case where the light-off temperature is reached, no external heating is required, and the reaction temperature is 250-400°C.

Main size

Physicalproperties

Chemical composition
